Dual zone alarm schematic

dual-zone-alarm-schematic-circuit-diagram

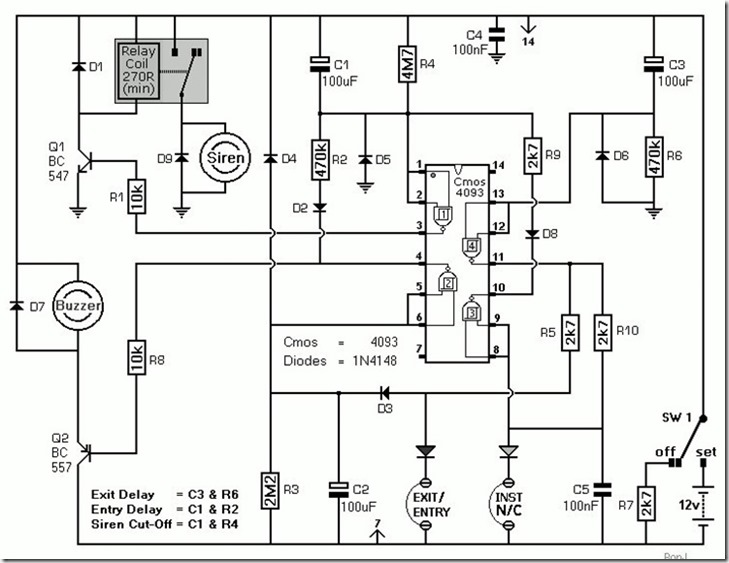

This brilliant circuit shows a two-zone alarm - with automatic exit, entry and siren cut-off timers.

It can be triggered by the usual types of normally-closed input devices - such as magnetic reed contacts - foil tape - PIRs etc.

The circuit will work at anything from 9 to 15-volts. All you need do is select a siren, buzzer and relay to suit the voltage you want to use.

When Sw1 move to the Set position - you have about 30 seconds to leave the building. If you re-enter through the Exit/Entry zone - the buzzer will sound - and you'll have about 30 seconds to switch the alarm off. The Instant zone has no entry delay. Anyone entering through the Instant zone - will sound the siren immediately.

More info about dual zone alarm

About ten minutes after the normally-closed loops have been restored - the siren will switch off - and the alarm will return to standby mode. It can then be re-activated by a subsequent intruder.

The various timing components are listed in the diagram. If you want to change the length of any of the delays - change the value of the capacitor and/or the resistor shown. Increasing the value of either - will increases the delay. And reducing the value of either - will shorten the delay.
